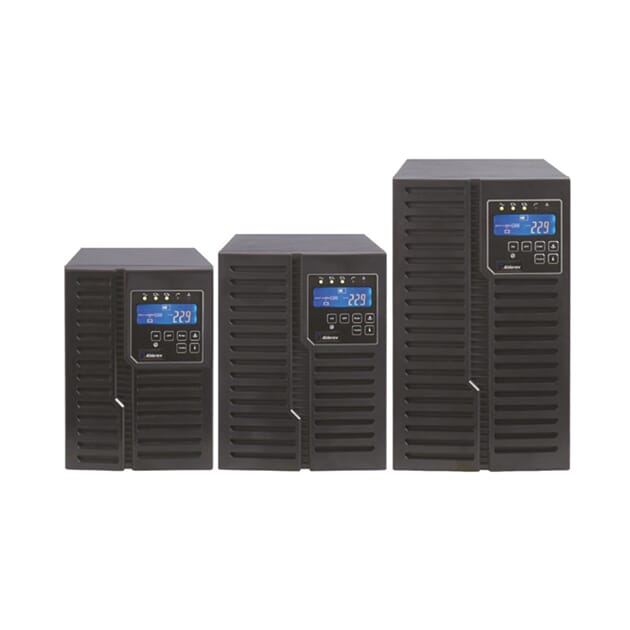

ARES ONLINE UPS 1000VA to 3000VA
• Online double conversion VFI protection from 1000VA to 3000VA
• Extreme battery lifetime thanks to:
- wide input voltage tolerance (110-300V)
- wide input frequency tolerance (44-66Hz)
- intelligent battery management
• Battery discharge level control, settable 30-100% of the
available capacity
• Precise patented backup time estimation
• 2 programmable IEC outlets plus two Schuko
FEATURES
• Cold start to activate loads without mains
• Multiple operation modes to maximize energy ef?ciency
• Strong overload capability to improve CB’s selectivity
• Manually activated extra service check
• Firmware upgradable for updates and customization
• Remote EPO and On/Off functions
• RS232 and USB port, comm. slot
• CEI 0-16 compliant
WHAT’S IN THE BOX
• Input power cable
• Output power cable
• USB card, RS485 card, dry contact relay card, SNMP/web card
• Extra RS232 card
• External battery cabinet
• Different outlets
• LED interface
• Ares Plus 3000 version with 8 batteries
OPTIONS - BATTERY DISCHARGE LEVEL CONTROL
1) Set your battery discharge percent level (3-100%)
2) When UPS is in battery mode, it stops when the set battery level is reached
3) UPS will be capable to turn on and discharge battery completely upon subsequent cold start
