DEFA MultiChargers are designed to simplify the installation and use of quality battery chargers in heavy vehicles. They are based on modern switch-mode technology and galvanized divisions, ensuring first-rate efficiency and dependability. MultiChargers are built to withstand harsh conditions. They can be used with all types of lead/acid batteries.

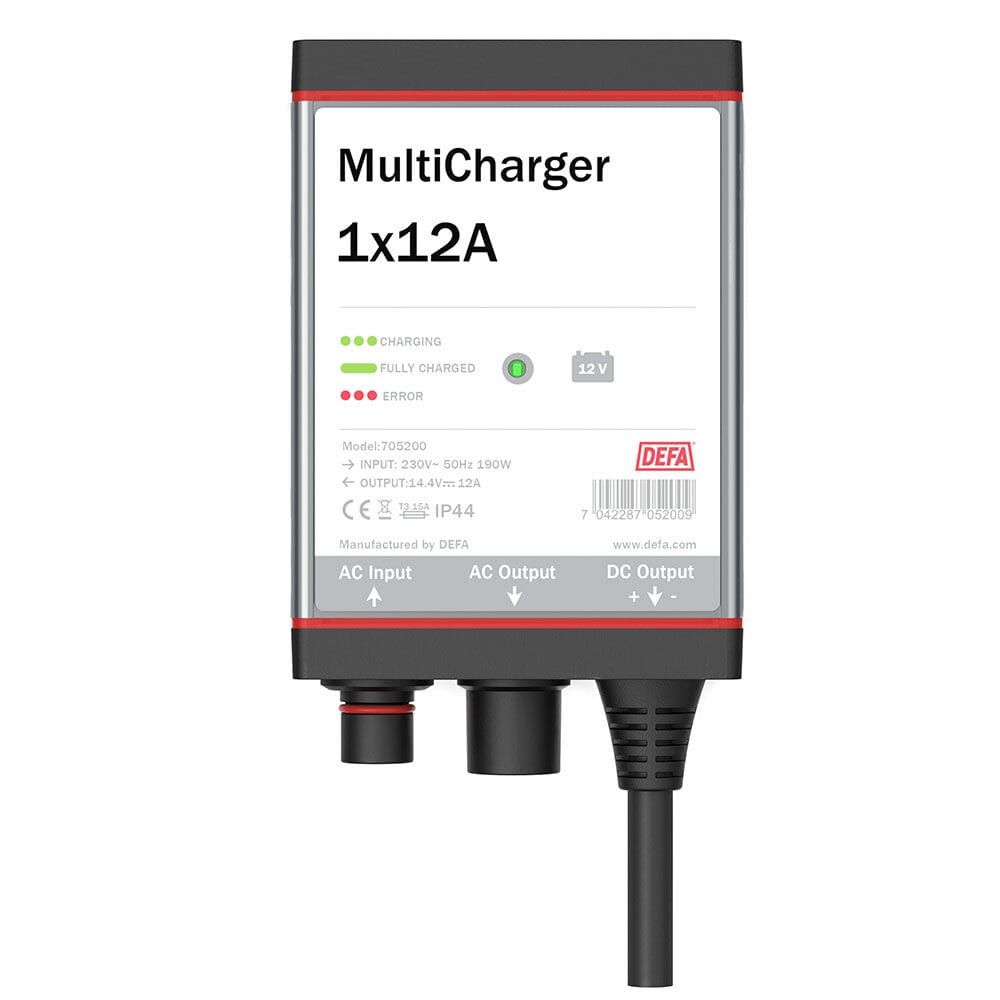

MultiCharger 1x12A is ideal for battery sizes up to about 150Ah. It can provide maintenance charging for an unlimited time. The charging is temperature compensated.
DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.
|
|
|
|
|
Operating temperature |
-35°C / +50°C |
|
Charging voltage |
14,4V @ 25°C |
|
Maintenance charging |
13,5V DC |
|
Charging current |
12A |
|
Battery size, max |
150Ah |
|
Insulation class |
I |
|
IP rating |
IP44 |
|
Size |
138x98x53mm |
|
Weight |
1kg |
|
Certification(s) |
EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
|
